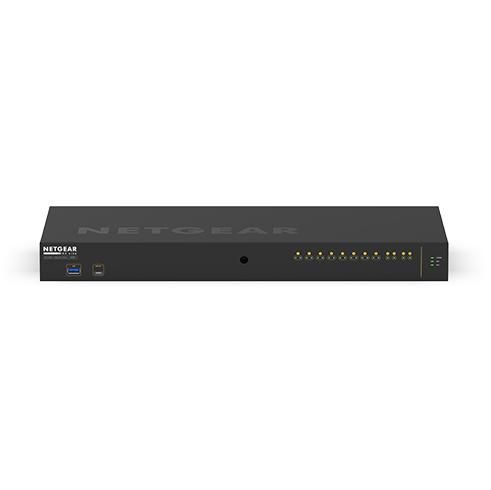

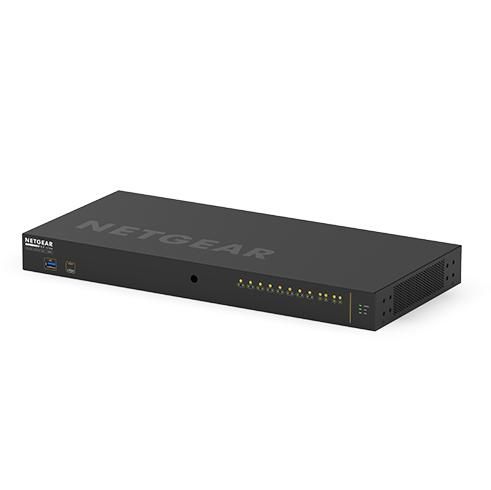

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Network
-
10G supportNo
-
Broadcast storm controlYes
-
Full duplexYes
-
Link aggregationYes
-
Networking standardsIEEE 802.1ab/IEEE 802.1D/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3x
-
Number of VLANs4093
-
Rate limitingYes
-
Spanning tree protocolYes
-
Virtual LAN featuresMAC address-based VLAN/Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
-
VLAN supportYes
Security
-
Access Control List (ACL)Yes
-
AuthenticationMAC-based authentication
-
Authentication typeRADIUS
-
BPDU filtering/protectionYes
-
DHCP featuresDHCP Option 82/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 relay/DHCPv6 server/DHCPv6 snooping
-
IGMP snoopingYes
-
Loop protectionYes
-
SSH/SSL supportYes
Ports & interfaces
-
Basic switching RJ-45 Ethernet ports quantity10
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
-
SFP module slots quantity2
Vendor information
-
Brand NameNetgear
-
Warranty1
Performance
-
Built-in processorYes
-
Internal memory2048
-
Mean time between failures (MTBF)778769
-
Noise level30.06
-
Processor frequency1250
-
Processor modelARM Cortex-A9
Design
-
Form factor1U
-
LED indicatorsPoE/Power/Status
-
Product colourBlack
-
Rack mountingYes
Operational conditions
-
Heat dissipation559.555
-
Non-operating altitude0 - 3000
-
Operating altitude0 - 3000
-
Operating relative humidity (H-H)0 - 90
-
Operating temperature (T-T)0 - 50
-
Storage relative humidity (H-H)0 - 95
-
Storage temperature (T-T)-20 - 70
Multicast features
-
IPv4 multicast entries2000
-
IPv6 multicast entries2000
-
Multicast supportYes
Data transmission
-
Jumbo frames12000
-
Jumbo frames supportYes
-
Latency (1 Gbps)2.27
-
MAC address table16000
-
Number of queues8
-
Packet buffer memory16
-
Store-and-forwardYes
-
Switching capacity24
-
Throughput17.86
Power
-
Power consumption (typical)163.9
Power over Ethernet (PoE)
-
Power over Ethernet plus (PoE+) ports quantity8
-
Power over Ethernet (PoE)Yes
-
Power over Ethernet (PoE) power per port30
-
Total Power over Ethernet (PoE) budget150
Management features
-
Quality of Service (QoS) supportYes
-
Switch layerL2/L3
-
Switch typeManaged
