EAN
4948570118397
In stock: 1-4
Delivery: 2–4 weeks

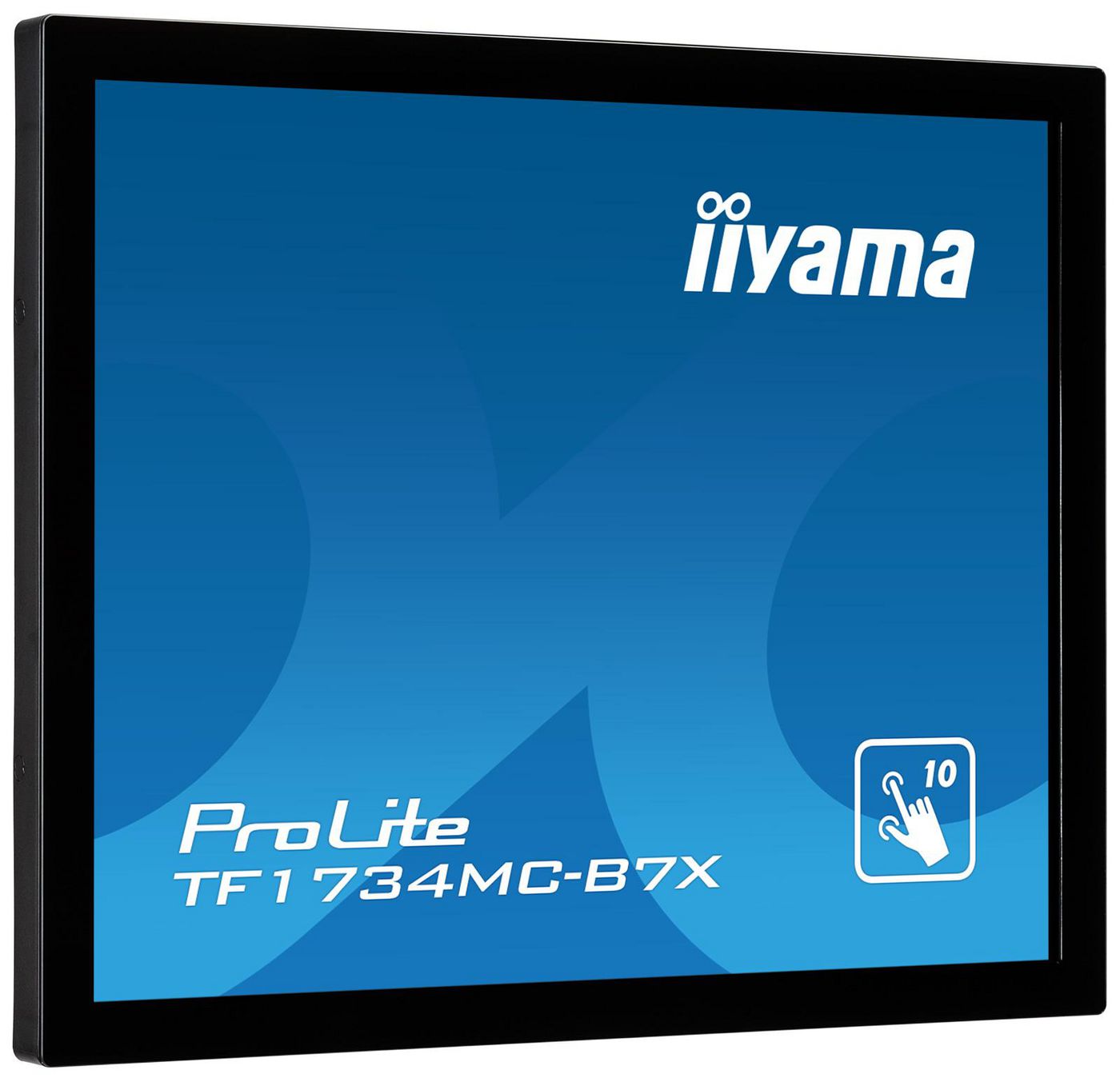

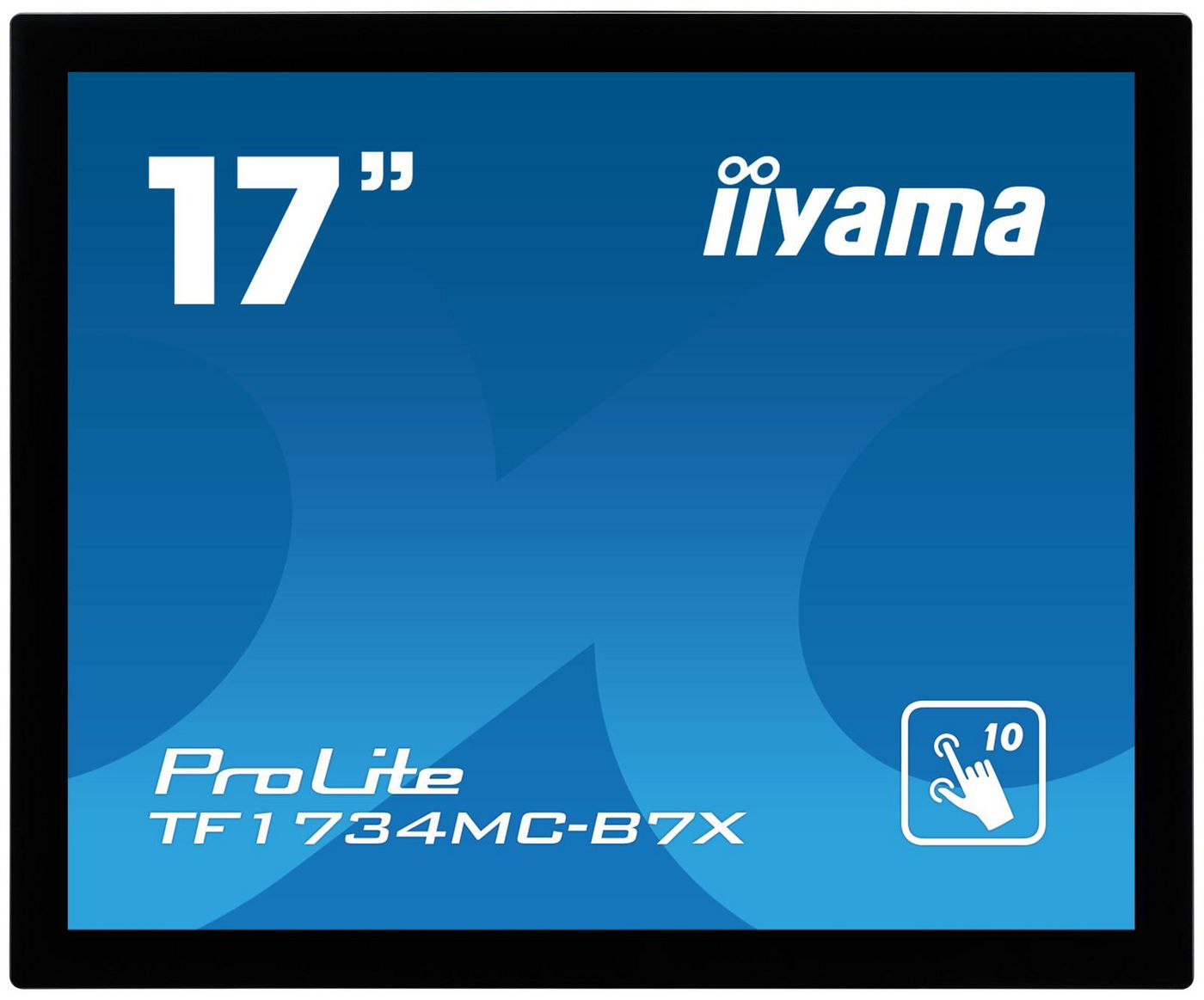

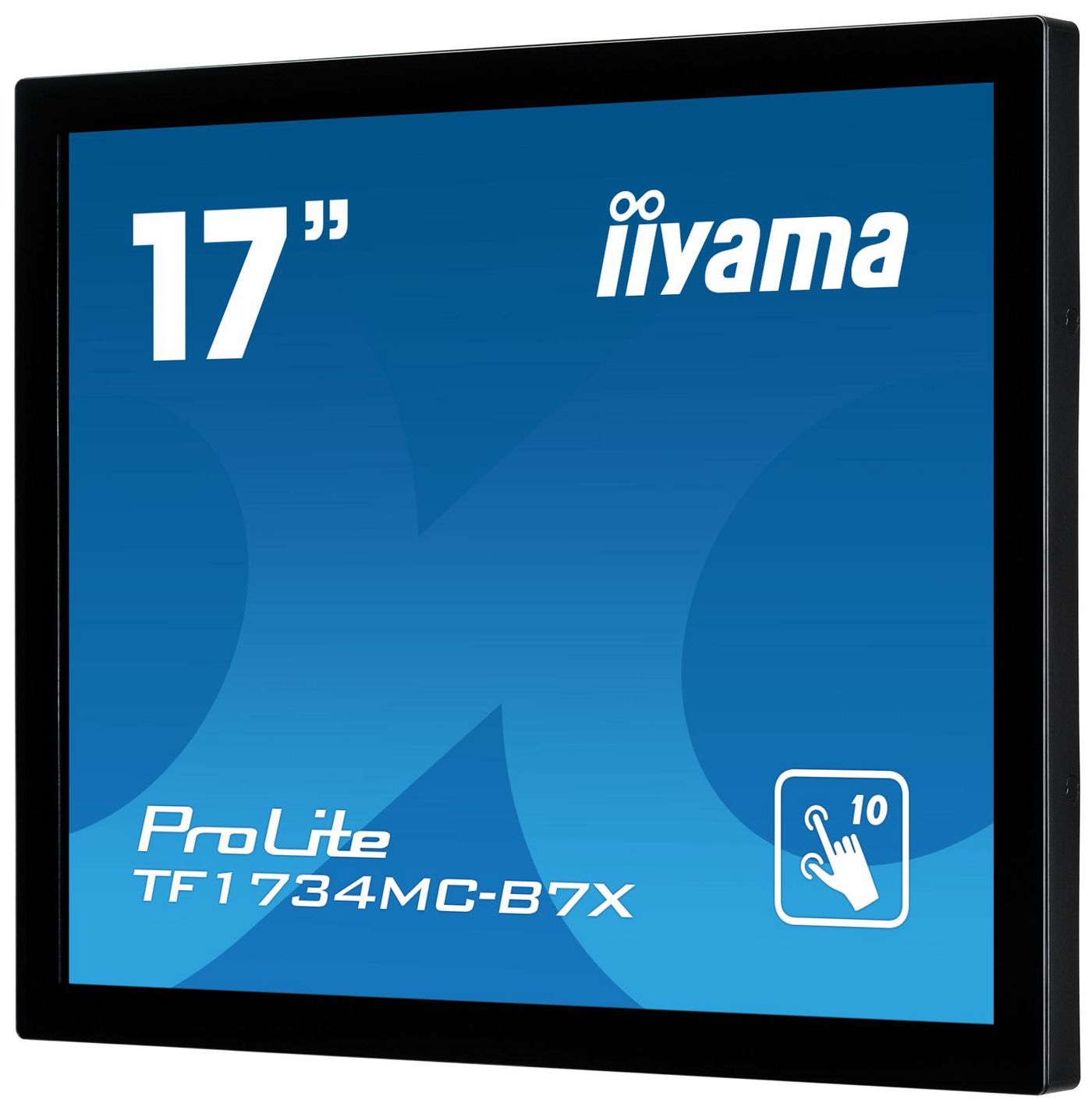

17’’ 10pt touch Open Frame monitor with Touch Through-Glass function
The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

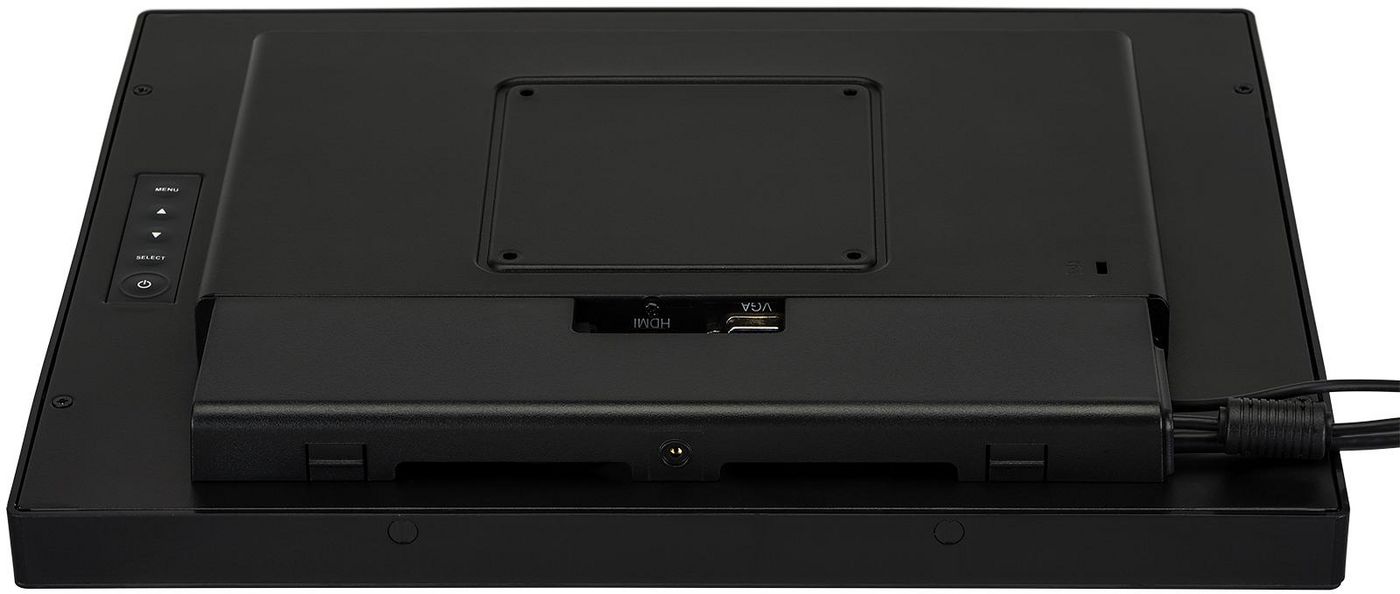

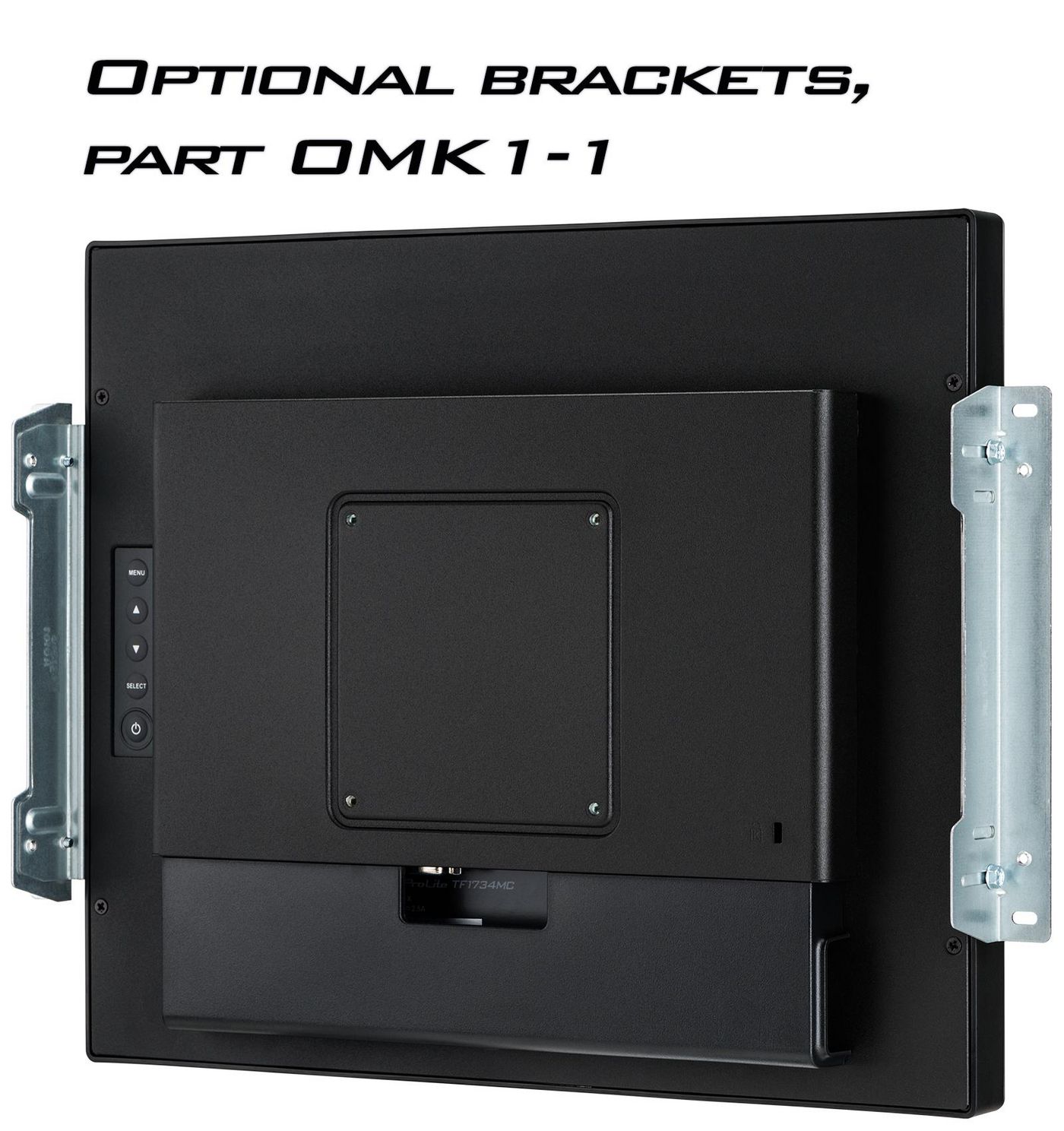

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
Power
-
AC adapter output voltage12
-
Energy consumption (SDR) per 1000 hours11
-
Energy efficiency class (HDR)Not available
-
Energy efficiency class (SDR)E
-
Energy efficiency scaleA to G
-
Power consumption (off)0.3
-
Power consumption (standby)0.6
-
Power consumption (typical)13
-
Power supply typeExternal
Performance
-
AMD FreeSyncNo
-
Built-in cameraNo
-
Built-in microphoneNo
-
Number of OSD languages7
-
Number of simultaneous touchpoints10
-
NVIDIA G-SYNCNo
-
On Screen Display (OSD)Yes
-
On Screen Display (OSD) languagesEnglish/French/German/Italian/Japanese/Simplified Chinese/Spanish/Traditional Chinese
-
Plug and PlayYes
-
Touchscreen technologyProjected capacitive system
-
Touch technologyMulti-touch
Display
-
Aspect ratio5:4
-
Colour depth8
-
Contrast ratio (typical)1000:1
-
Display brightness350
-
Display brightness (typical)350
-
Display diagonal17
-
Display diagonal (metric)43
-
Display number of colours16.7 million colours
-
Display resolution1280 x 1024
-
Display technologyLED
-
HD typeSXGA
-
Horizontal scan range31.4 - 80
-
Native aspect ratio5:4
-
Panel typeTN
-
Pixel pitch0.264 x 0.264
-
Response time5
-
Screen shapeFlat
-
Supported graphics resolutions1280 x 1024 (SXGA)
-
Supported video modes1024p
-
TouchscreenYes
-
Viewable size diagonal43
-
Viewable size, horizontal33.8
-
Viewable size, vertical27.05
-
Viewing angle, horizontal170
-
Viewing angle, vertical160
Vendor information
-
Brand Nameiiyama
-
Warranty1
Packaging content
-

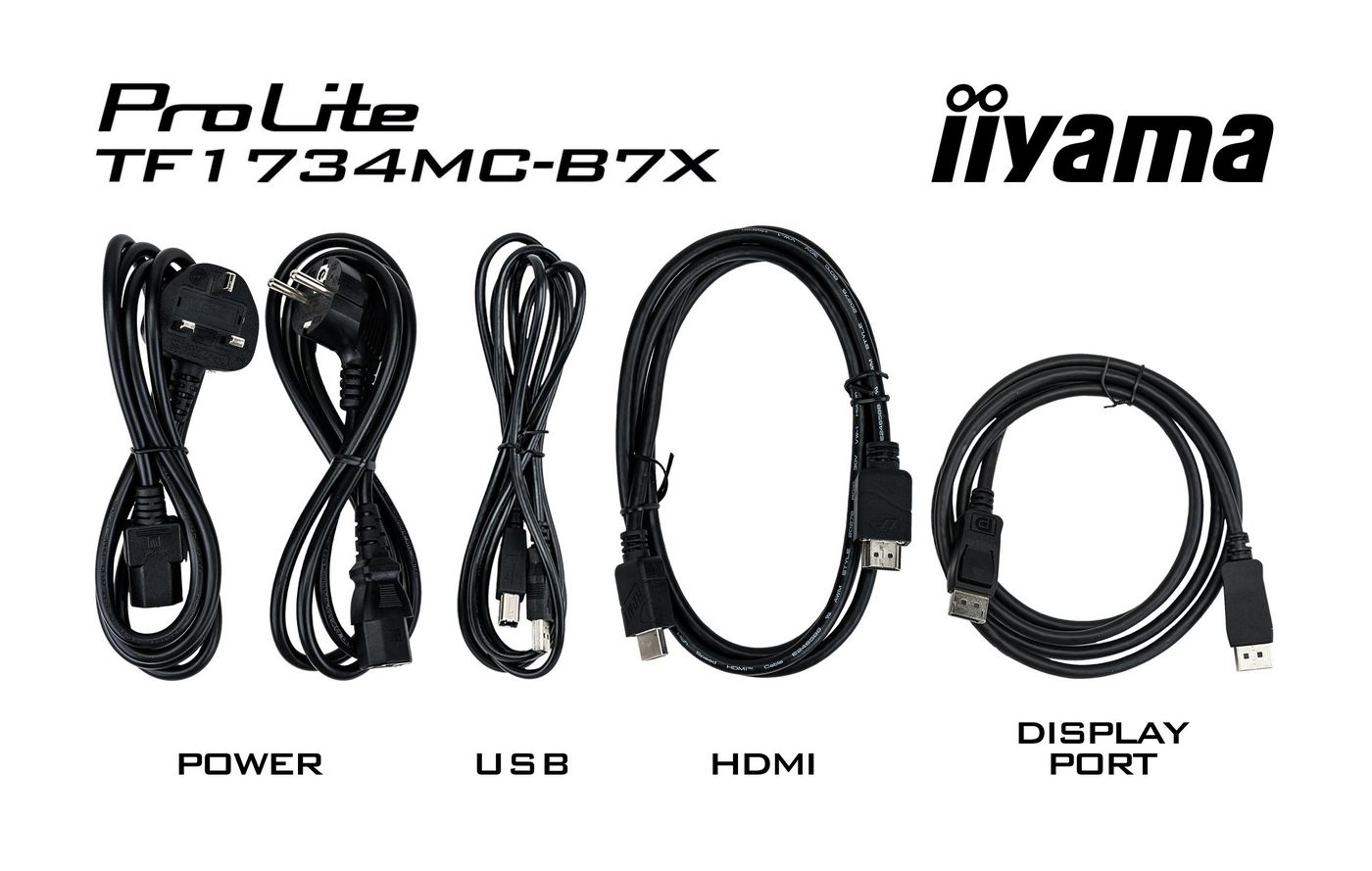

Cables includedAC/DisplayPort/HDMI/USB
-
Quick start guideYes
Other features
-
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
-
Connection to PCYes
-
Display viewable area (HxV)338 x 270
-
International Protection (IP) codeIP65
-
Placement supportedHorizontal/Vertical
Weight & dimensions
-
Depth (without stand)4.75
-
Depth (with stand)4.75
-
Height (without stand)30.7
-
Height (with stand)30.7
-
Weight (without stand)3600
-
Weight (with stand)3600
-
Width (without stand)36.9
-
Width (with stand)36.9

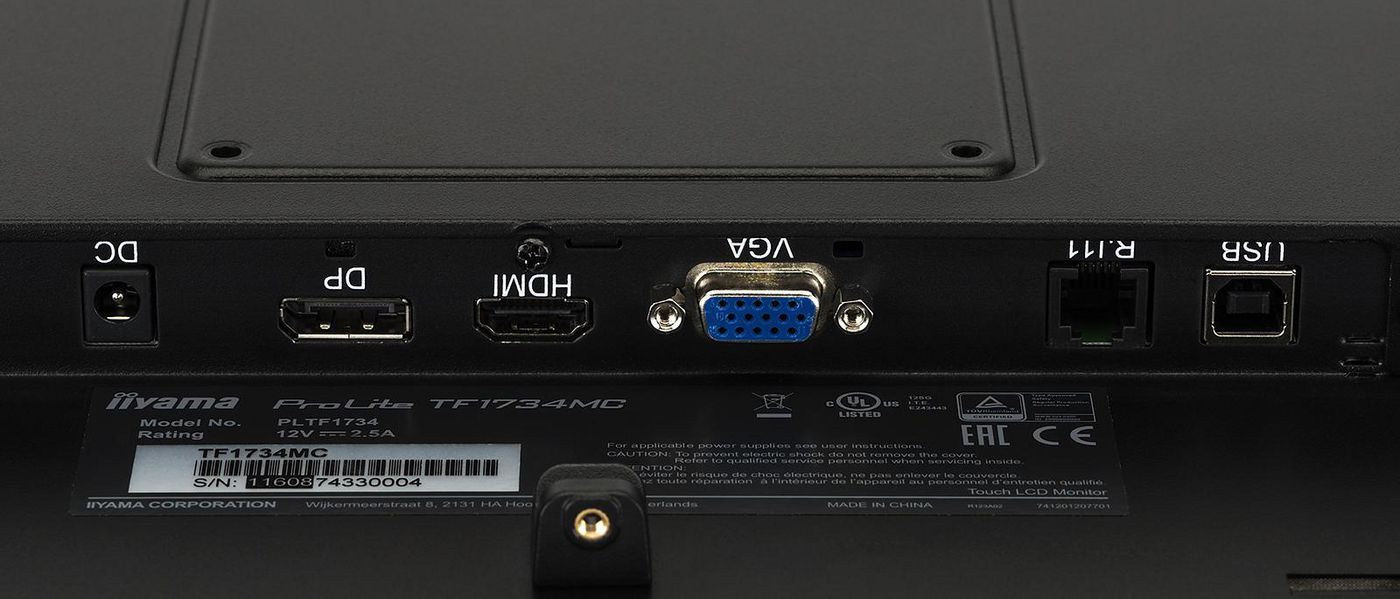

Ports & interfaces
-
DisplayPorts quantity1
-
HDCPYes
-
HDMIYes
-
HDMI ports quantity1
-
USB requiredYes
-
USB Touch portYes
-
USB Touch ports quantity1
-
VGA (D-Sub) ports quantity1
Design
-
Front bezel colourBlack
-
Glass thickness3
-
Product colourBlack
Ergonomics
-

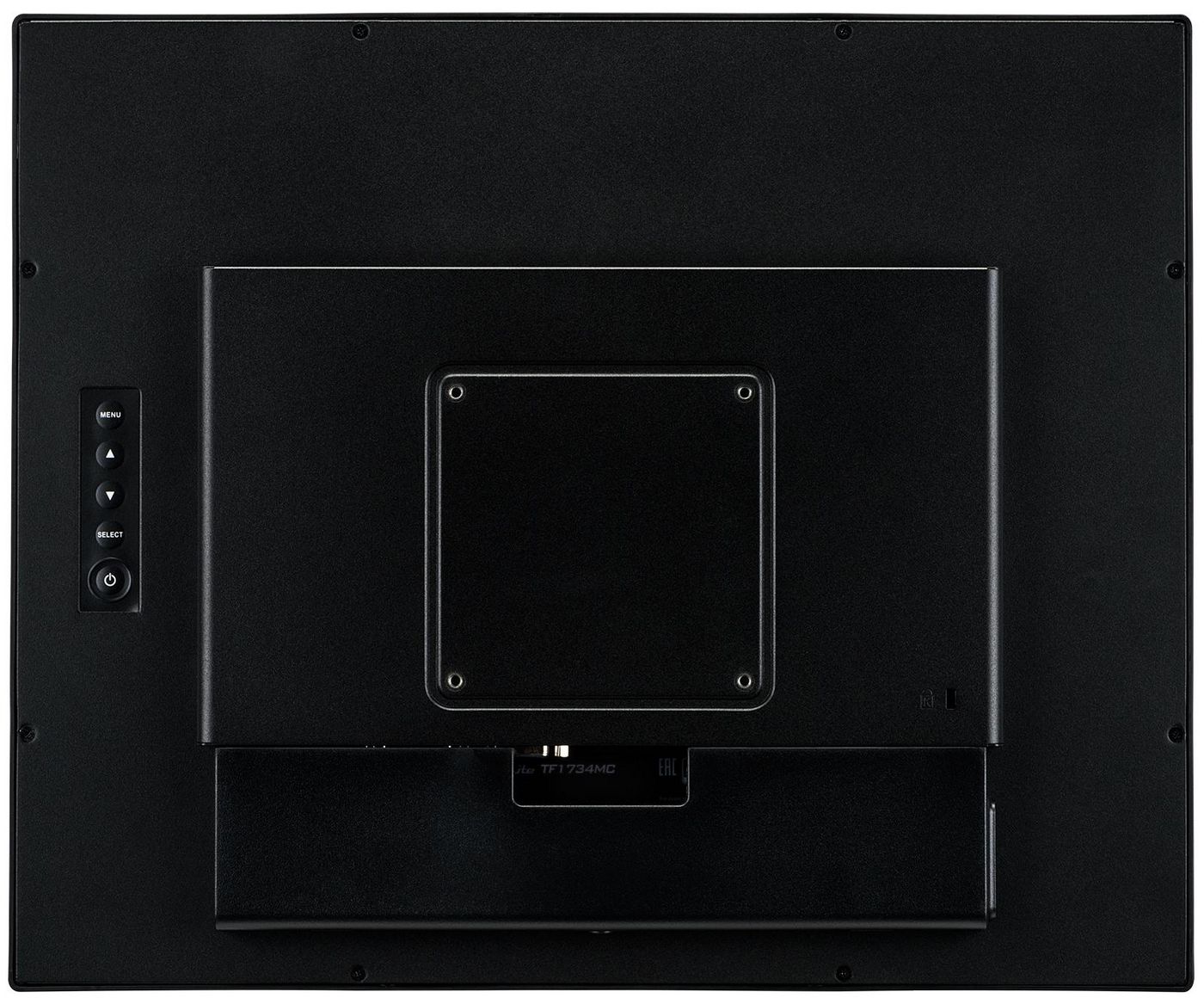

Panel mounting interface100 x 100
Features
-
VESA mountingYes
Recommended products

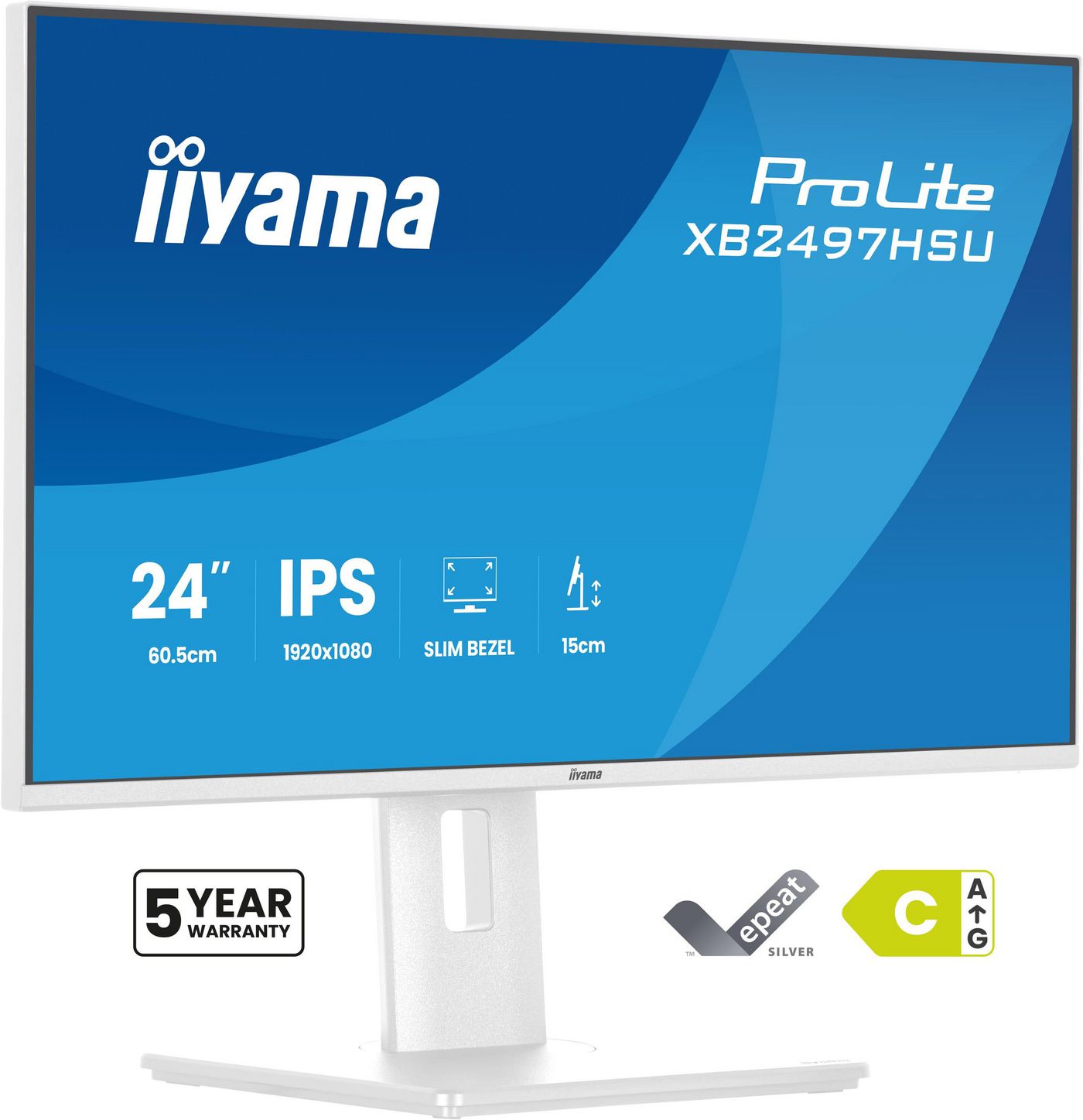

iiyama / MPN: XB2497HSU-W1
24" FHD Business IPS
Price on request

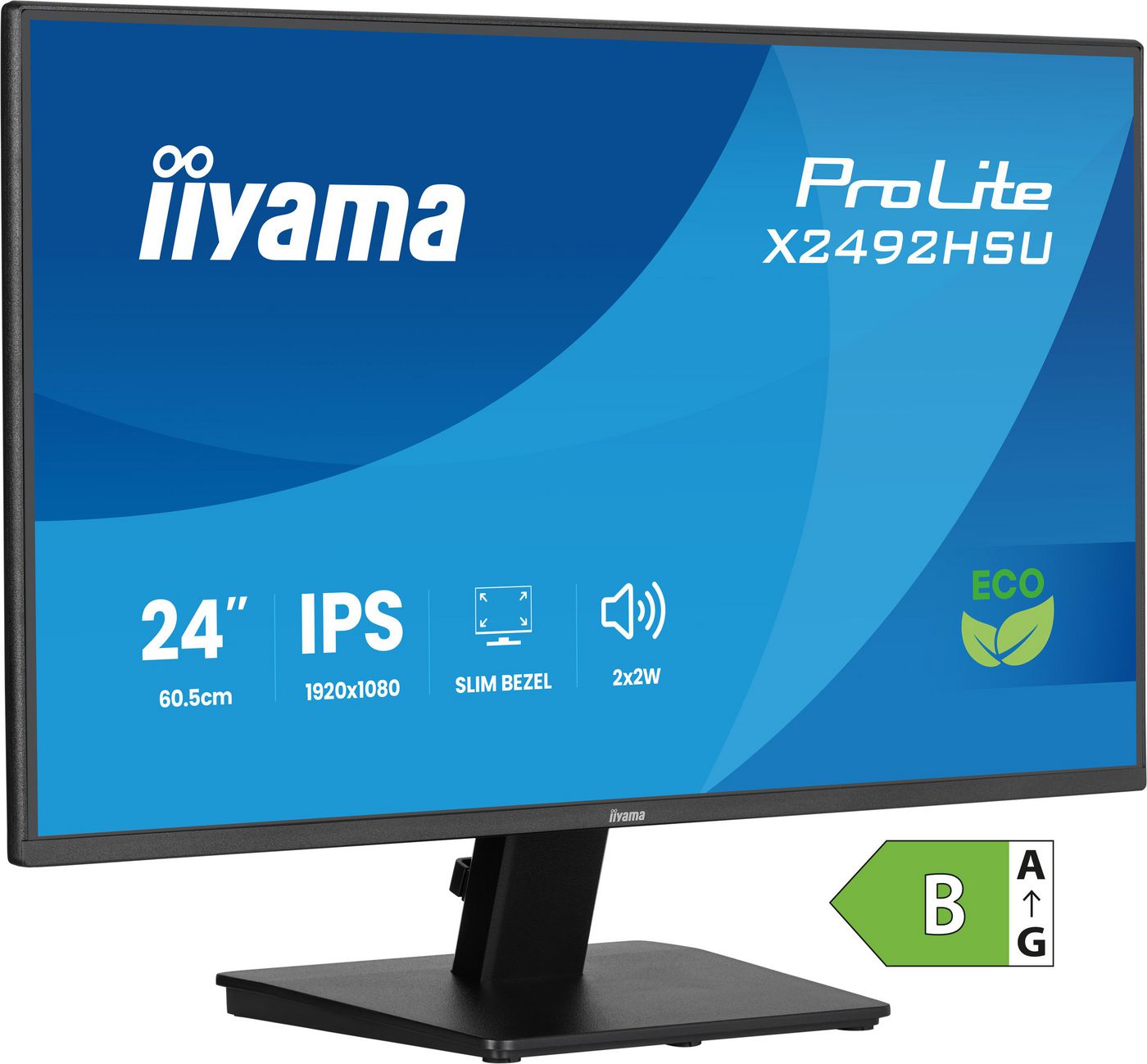

iiyama / MPN: X2492HSU-B1
24" FHD IPS Green Choice
Price on request

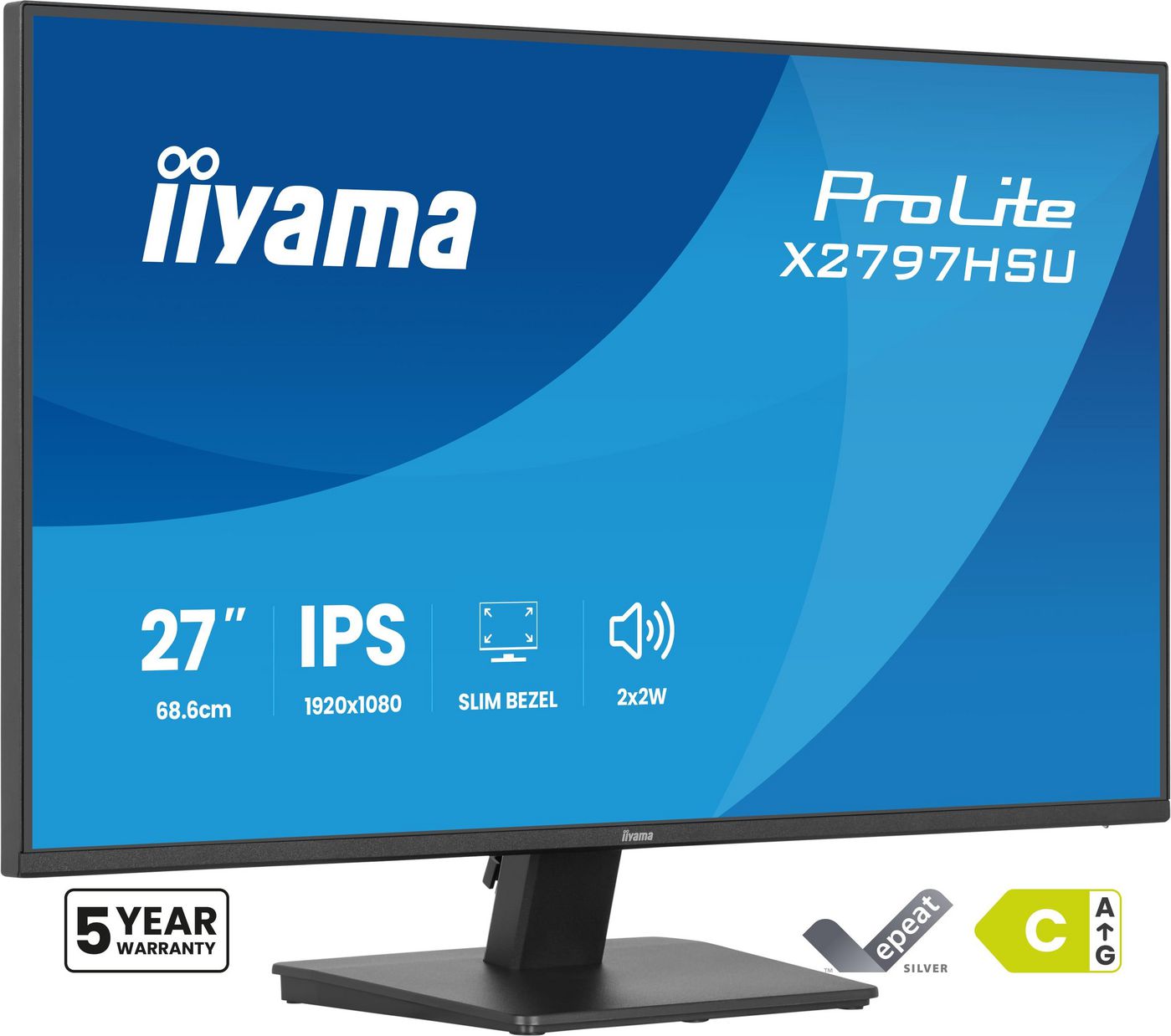

iiyama / MPN: X2797HSU-B1
