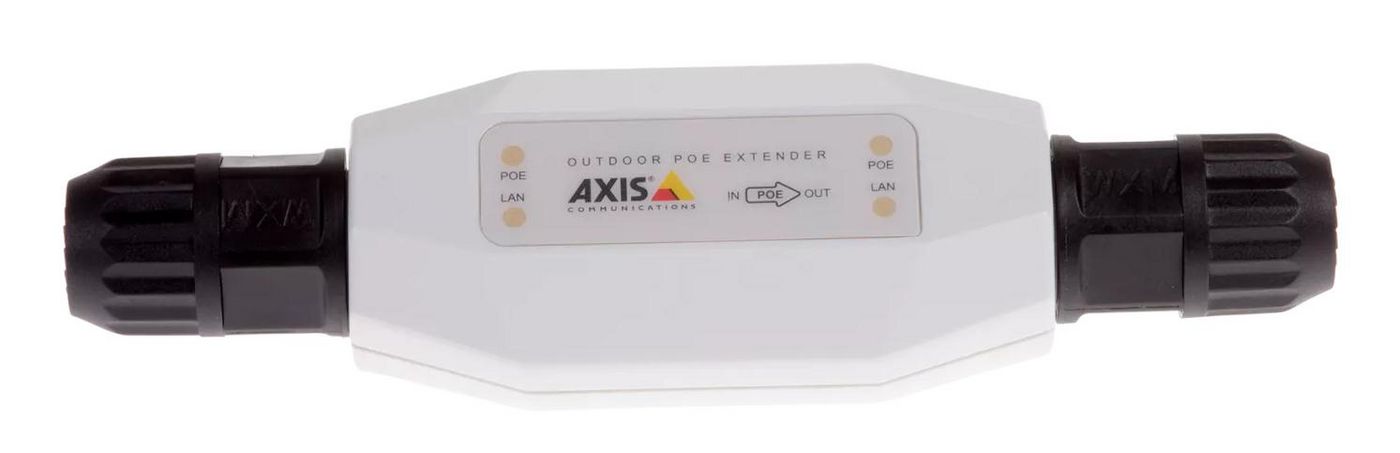

T8129-E OUTDOOR POE EXTENDER

Wide compatibility
Compatible with all Axis network video products, AXIS T8129-E Outdoor PoE Extender supports PoE, and it is both IEEE 802.3af, IEEE 802.3at and High PoE 60 W compliant. With its rugged, IP66/IP67-rated enclosure, AXIS T8129-E withstands harsh environmental conditions and challenging temperatures.

AXIS T8129-E Outdoor PoE Extender offers a smart and easy-to-install solution for extending the range of your network – with no additional power supply. Without being restricted by the 100m (328ft.) limit for Ethernet cables, Axis network video products can be installed at greater distances. Simply connect AXIS T8129-E in-line with the CAT5e or CAT6 cable and power is forwarded to your Axis network video product.

Range depends on the power required so depending on midspan and camera type the connection can in total be between 200-400 meters (656-1312 ft.). For instance, a 25 watt PTZ dome camera may be located 200 m (656 ft.) away using a single AXIS T8129-E. Or, the cable length to a regular 5 watt network camera may extend up to 400 m (1312 ft.), by fitting three AXIS T8129-E at 100 m (328 ft.) intervals.

No additional power supply
AXIS T8129-E does not require any additional power supply and the connected network camera is fed by a single PoE switch or midspan. It offers two female Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is maintained.
