ID: 100022195
TD2430 Touch Display
OEM Number
EAN
766907846911
This product is discontinued
In stock: 5-9
Delivery: 1-3 тижні
- 10-point Projected Capacitive Touch
- SuperClear® MVA-type panel technology
- Frameless Design
- Versatile Connectivity
- Durable, Scratch-resistant Screen

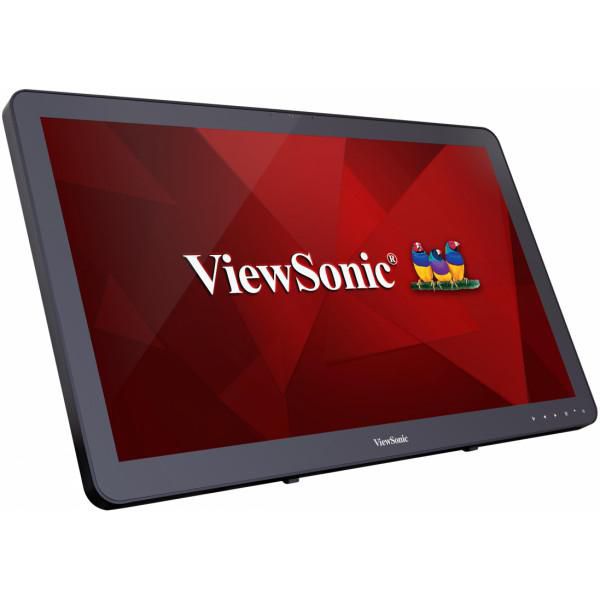

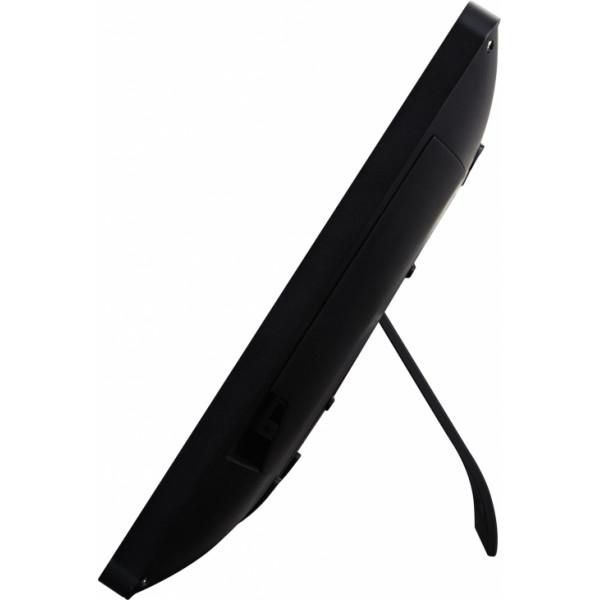

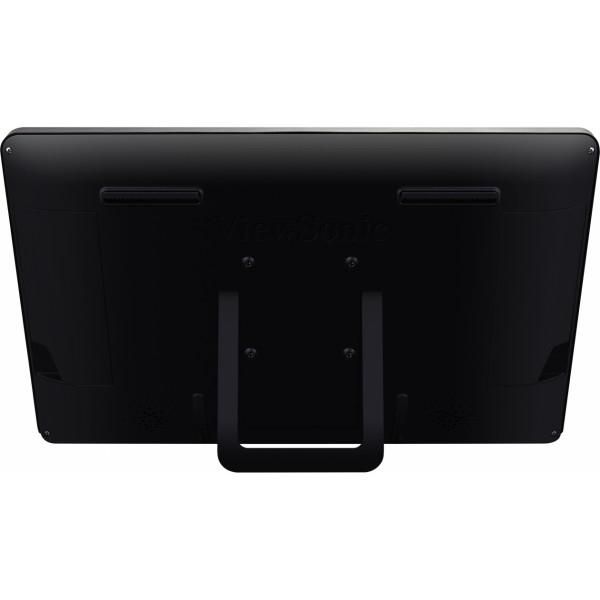

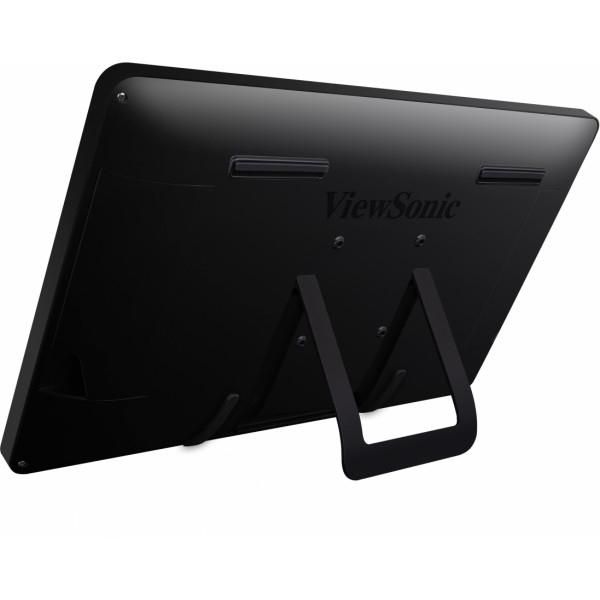

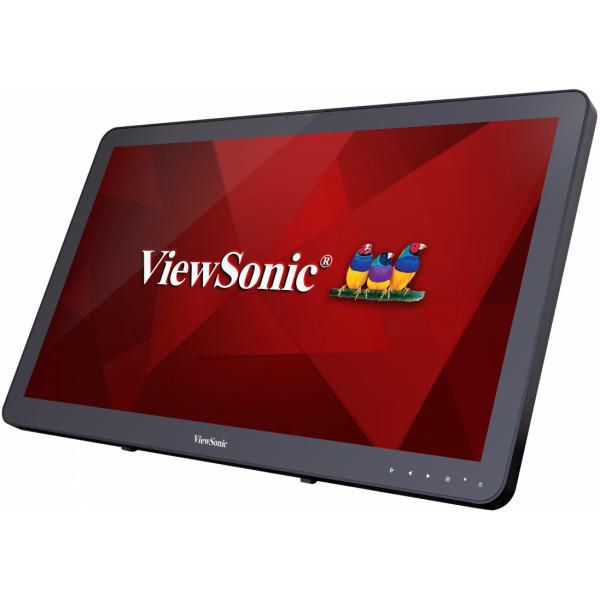

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.
- SuperClear® MVA-type panel technology
- Frameless Design
- Versatile Connectivity
- Durable, Scratch-resistant Screen
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.
Display
-
3DNo
-
Aspect ratio16:9
-
Backlight typeW-LED
-
Contrast ratio (dynamic)50000000:1
-
Contrast ratio (typical)3000:1
-
Digital horizontal frequency50 - 76
-
Digital vertical frequency50 - 76
-
DisplayMVA
-
Display brightness200
-
Display diagonal23.6
-
Display diagonal (metric)60
-
Display number of colours16.78 million colours
-
Display resolution1920 x 1080
-
Display technologyLCD
-
HD typeFull HD
-
Horizontal scan range24 - 82
-
LED backlightYes
-
Maximum refresh rate76
-
Native aspect ratio16:9
-
Panel typeVA
-
Pixel pitch0.2715 x 0.2715
-
Response time5
-
Screen shapeFlat
-
TouchscreenYes
-
Vertical scan range50 - 75
-
Viewing angle, horizontal178
-
Viewing angle, vertical178
Power
-
AC input frequency50 - 60
-
AC input voltage100-240
-
Energy consumption (SDR) per 1000 hours15
-

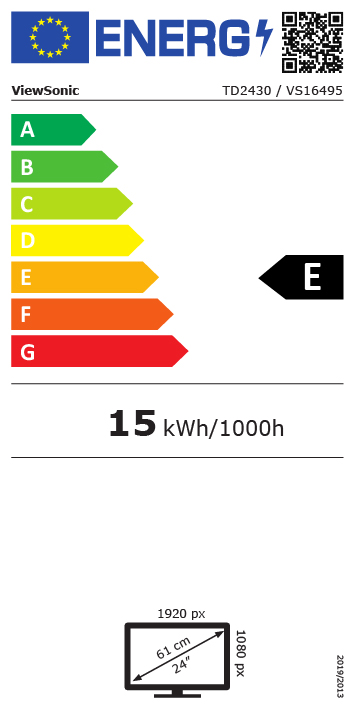

Energy efficiency class (SDR)E
-
Energy Star certifiedYes
-
European Product Registry for Energy Labelling (EPREL) code404623
-
Power consumption (max)28
-
Power consumption (standby)0.5
-
Power consumption (typical)25
-
Power supply typeAC
Performance
-
AMD FreeSyncNo
-
Built-in cameraNo
-
Built-in microphoneNo
-
Built-in speaker(s)Yes
-
Linux operating systems supportedYes
-
Mac operating systems supportedYes
-
Number of simultaneous touchpoints10
-
Number of speakers2
-
NVIDIA G-SYNCNo
-
Other operating systems supportedAndroid
-
RMS rated power5
-
Touchscreen technologyProjected capacitive system
-
Touchscreen typeMulti-user
-
Touch technologyMulti-touch
-
Windows operating systems supportedWindows 10/Windows 7/Windows 8
Vendor information
-
Brand NameViewSonic
-
Warranty1

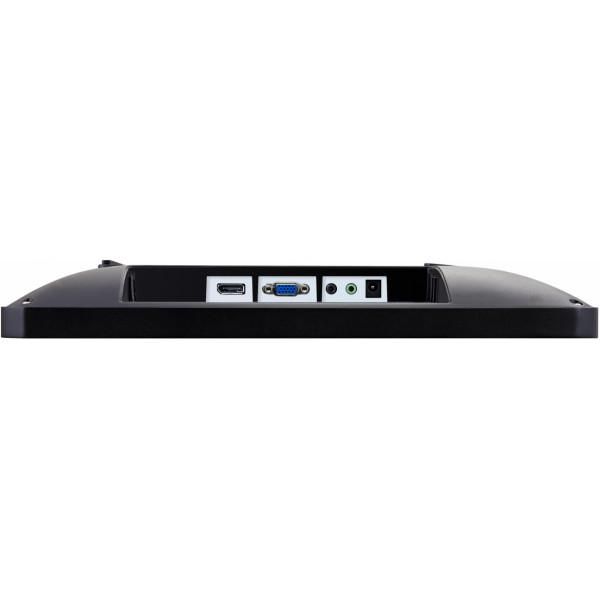

Ports & interfaces
-
Built-in USB hubYes
-
DisplayPorts quantity1
-
DisplayPort version1.2
-
HDMIYes
-
HDMI ports quantity1
-
HDMI version1.4
-
Headphone outYes
-
Headphone outputs1
-
Number of upstream ports1
-
Number of USB Type-B upstream ports quantity1
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
-
USB hub version3.2 Gen 1 (3.1 Gen 1)
-
USB Type-A downstream ports quantity2
-
USB upstream port typeUSB Type-B
-
VGA (D-Sub) ports quantity1
Ergonomics
-
Cable lock slotYes
-
Panel mounting interface100 x 100
-
TiltableYes
-
Tilt adjustmentYes
-
Tilt angle range20 - 53
-
VESA mountingYes
-
Wall mountableYes
Packaging content
-
Cables includedAC/Audio (3.5mm)/HDMI/USB
-
Quick start guideYes
Other features
-
CertificationcTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
-
Compliance certificatesCE/REACH/RoHS
-
Display viewable area (HxV)521.28 x 293.22
-
Full HDYes
-
Mobile operating systems supportedAndroid
-
Weight5500
Weight & dimensions
-
Depth (without stand)4.7
-
Depth (with stand)4.7
-
Height (without stand)35.3
-
Height (with stand)35.3
-
Weight (without stand)5400
-
Weight (with stand)5510
-
Width (without stand)57.3
-
Width (with stand)57.3
Operational conditions
-
Operating relative humidity (H-H)20 - 90
-
Operating temperature (T-T)0 - 40
-
Storage relative humidity (H-H)5 - 90
-
Storage temperature (T-T)-20 - 60
Logistics data
-
Pallet gross height189
-
Pallet gross length100
-
Pallet gross width120
-
Products per master (outer) case1
Design
-
Product colourBlack
Technical details
-
Sustainability certificatesCE/ENERGY STAR/ErP/REACH/RoHS
